Product Details:
|
| Laser: | Fractional Co2 Lazer | Power: | 40W ,60W For Option |
|---|---|---|---|
| Beam: | Articulated Arm With 7-joint | Scan: | Circle, Triangle, Square, Rectangle,hexagon, Ellip |
| Aiming: | 635nm Diode Laser 5mw | Training: | Manual+online Training |
| High Light: | 635nm 5mw skin rejuvenation laser machine,5mw Co2 skin rejuvenation laser machine,5mw medical co2 laser machine |
||

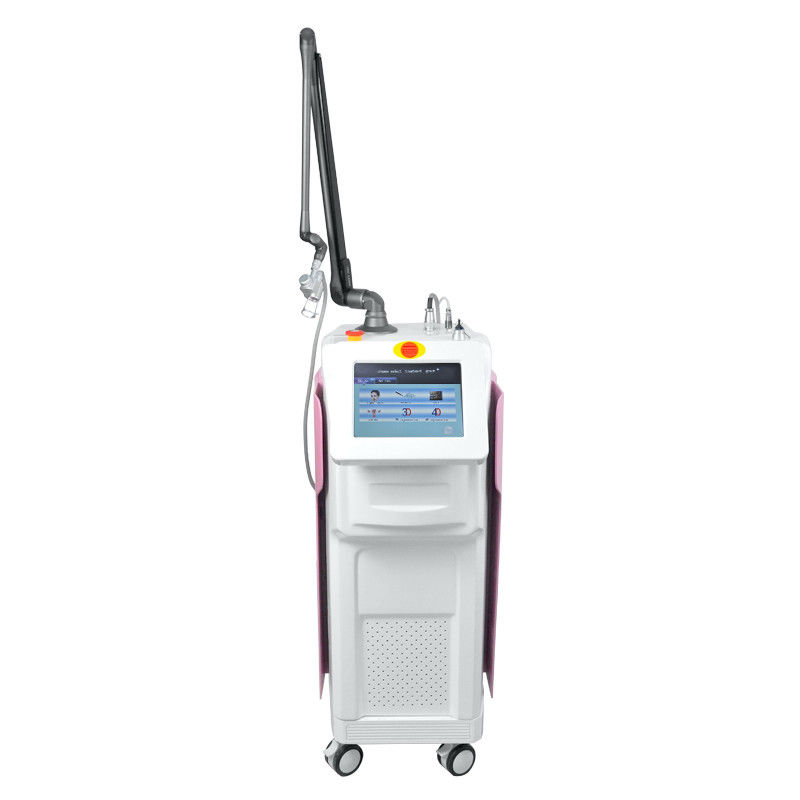

7 Articular Arm Fractional Tube Acne Scarring Removal Carbon Dioxide Co2 Laser
co2 laser scar removal machine Characters:
Specification :
| trix mode | Scan pattern | Square, rectangle, round, triangle, oval, 6-diamond shape, line or customized graphics |
| Scan pattern size | 0.1x0.1mm—20x20mm | |
| Dot quantity | 400 dots at most | |
| Working state | ultrapulsed mode,CW mode | |
| Scan mode | Radom scan; Sequence scan; maximum distance scan | |
| Pulse duration | 0.1-10ms | |
| Spot distance | 0.1-2mm | |
| Pulse energy | 1mj to 100mj is optional for each dot. | |
|
Technical specification |
Laser apparatus | Sealed off laser device stimulated by direct current |
| Condenser focus | f=50mm | |
| Beam divergence angle | 0.3 mrad | |
| Spot size | ≥0.2mm at the focus | |
| Radiation time / Interval time | 0.01 1 s | |
| Aiming beam | 635nm infrared ray | |
| Beam transport device | 7 articular arm |
Working Therapy :
